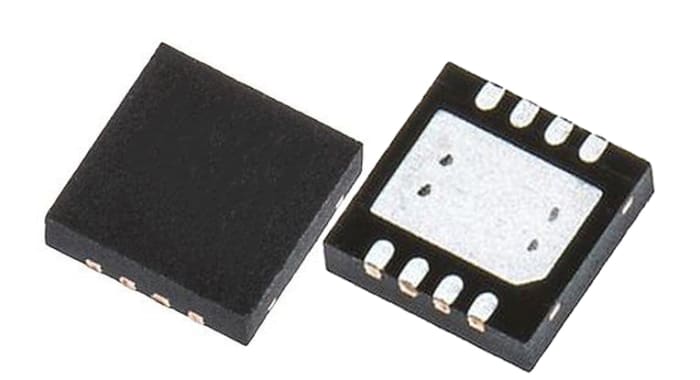

N-Channel MOSFET, 80 A, 100 V, 8-Pin DFN ON Semiconductor FDWS86068-F085
RS Stock No. 185-9082
Brand ON Semiconductor
Manufacturers Part No. FDWS86068-F085
2792 in stock in the UK
2792 in stock in the UK
$ 2.202
Each (In a Pack of 4)
N-Channel MOSFET, 80 A, 100 V, 8-Pin DFN ON Semiconductor FDWS86068-F085
Buy in bulk
| quantity | Unit price |
|---|---|
| 4 - 36 | $ 2.202 |
| 40 - 396 | $ 1.873 |
| 400 - 1996 | $ 1.508 |
| 2000 - 3996 | $ 1.309 |
| 4000+ | $ 1.269 |
Production pack (Reel)
Live stock
2792 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
80 A
Maximum Drain Source Voltage
100 V
Package Type
DFN
Mounting Type
Surface Mount
Pin Count
8
Maximum Drain Source Resistance
6.4 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
214 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Forward Diode Voltage
1.3V
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q101
Length
5.1mm
Typical Gate Charge @ Vgs
31 nC @ 10 V
Height
1.05mm
Width
6.3mm
Minimum Operating Temperature
-55 °C
Country of Origin
PH
