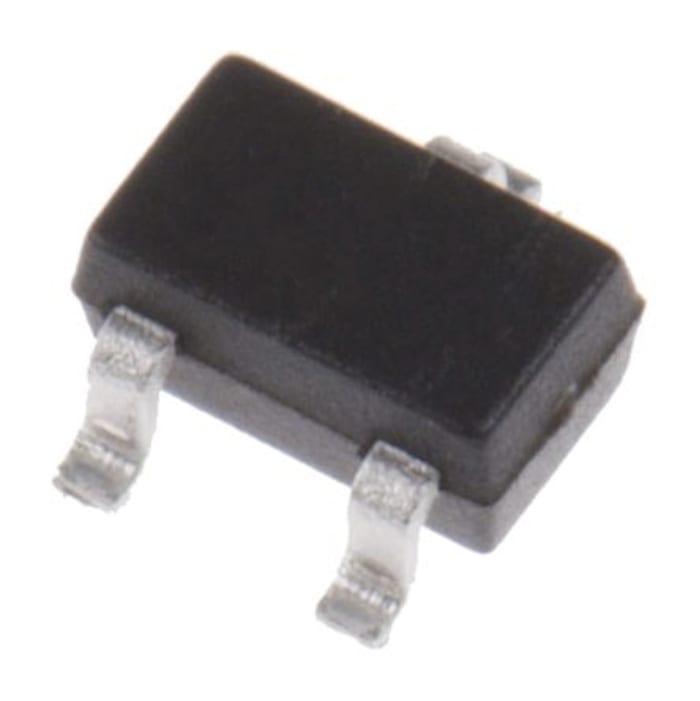

ON Semiconductor NUP1128WTT1G, Bi-Directional TVS Diode, 165W, 3-Pin SC-70
RS Stock No. 185-9060
Brand ON Semiconductor
Manufacturers Part No. NUP1128WTT1G
2992 in stock in the UK
2992 in stock in the UK
$ 0.034
Each (In a Pack of 22)
ON Semiconductor NUP1128WTT1G, Bi-Directional TVS Diode, 165W, 3-Pin SC-70
Buy in bulk
| quantity | Unit price |
|---|---|
| 22 - 198 | $ 0.034 |
| 220 - 2178 | $ 0.176 |
| 2200 - 21978 | $ 0.075 |
| 22000 - 65978 | $ 0.050 |
| 66000+ | $ 0.040 |
Production pack (Reel)
Live stock
2992 in stock in the UK
Specifications
Brand
ON Semiconductor
Direction Type
Bi-Directional
Diode Configuration
Single
Maximum Clamping Voltage
55V
Minimum Breakdown Voltage
27.5V
Mounting Type
Surface Mount
Package Type
SC-70
Pin Count
3
Peak Pulse Power Dissipation
165W
Maximum Peak Pulse Current
3A
ESD protection
Yes
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+175 °C
Height
0.9mm
Width
1.35mm
Test Current
1mA
Maximum Reverse Leakage Current
750nA
Surge Current Rating
50A
Dimensions
2.2 x 1.35 x 0.9mm
Automotive Standard
AEC-Q101
Capacitance
13pF
Length
2.2mm
Working Voltage
26.5V
Country of Origin
CN
