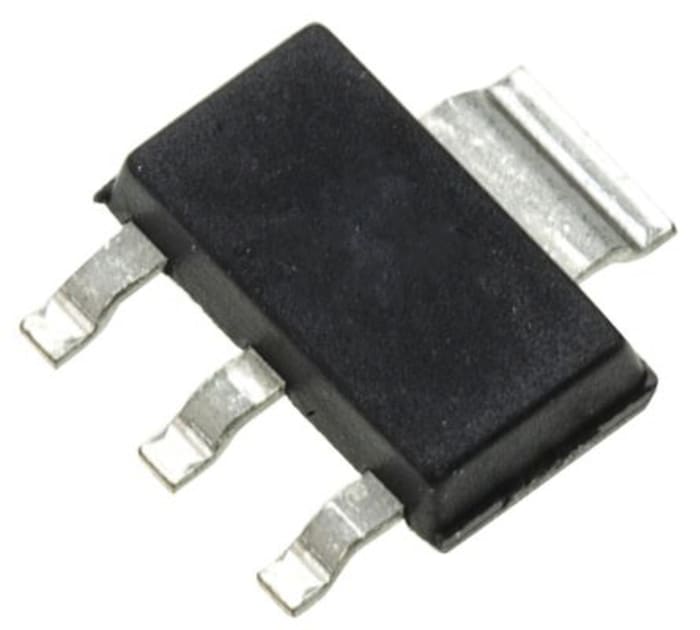

ON Semiconductor NCV1077STBT3G, PWM Controller, 8.2 V, 100 kHz 3 + Tab-Pin, SOT-223
RS Stock No. 185-8839
Brand ON Semiconductor
Manufacturers Part No. NCV1077STBT3G
4000 in stock in the UK
4000 in stock in the UK
$ 2.323
Each (In a Pack of 4)
ON Semiconductor NCV1077STBT3G, PWM Controller, 8.2 V, 100 kHz 3 + Tab-Pin, SOT-223
Buy in bulk
| quantity | Unit price |
|---|---|
| 4 - 8 | $ 2.323 |
| 12 - 96 | $ 1.974 |
| 100 - 496 | $ 1.383 |
| 500 - 996 | $ 1.343 |
| 1000+ | $ 1.065 |
Production pack (Reel)
Live stock
4000 in stock in the UK
Specifications
Brand
ON Semiconductor
Maximum Switching Frequency
100 kHz
Output Voltage
670 V
Output Current
800 mA
Mounting Type
Surface Mount
Fall Time
10ns
Rise Time
20ns
Package Type
SOT-223
Pin Count
3 + Tab
Maximum Duty Cycle
73%
Dimensions
6.7 x 3.7 x 1.65mm
Length
6.7mm
PWM Controller Type
Current Mode
Width
3.7mm
Height
1.65mm
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q100
Maximum Operating Supply Voltage
8.2 V
Country of Origin
MY
