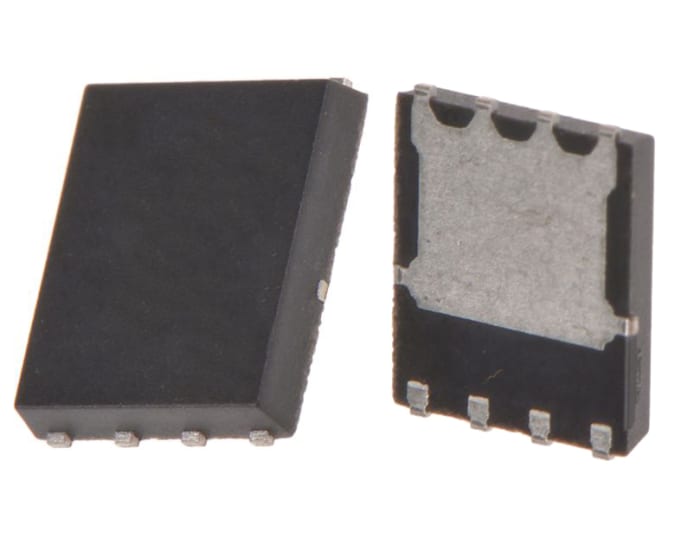

N-Channel MOSFET, 84 A, 80 V, 8-Pin PQFN ON Semiconductor FDMS007N08LC
RS Stock No. 185-8770
Brand ON Semiconductor
Manufacturers Part No. FDMS007N08LC
3000 in stock in the UK
3000 in stock in the UK
$ 1.692
Each (In a Pack of 5)
N-Channel MOSFET, 84 A, 80 V, 8-Pin PQFN ON Semiconductor FDMS007N08LC
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 5 | $ 1.692 |
| 10 - 95 | $ 1.437 |
| 100 - 245 | $ 1.114 |
| 250 - 495 | $ 1.085 |
| 500+ | $ 0.948 |
Production pack (Reel)
Live stock
3000 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
84 A
Maximum Drain Source Voltage
80 V
Package Type
PQFN
Mounting Type
Surface Mount
Pin Count
8
Maximum Drain Source Resistance
11.6 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
2.5V
Minimum Gate Threshold Voltage
1V
Maximum Power Dissipation
92.6 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Forward Diode Voltage
1.3V
Maximum Operating Temperature
+150 °C
Length
5.1mm
Typical Gate Charge @ Vgs
33 nC @ 10 V
Height
1.05mm
Width
6.15mm
Minimum Operating Temperature
-55 °C
Country of Origin
PH
