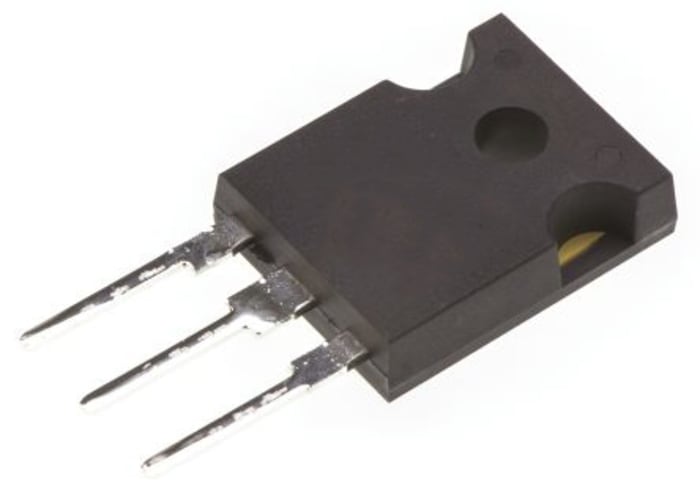

ON Semiconductor AFGHL40T65SPD IGBT, 80 A 650 V, 3-Pin TO-247, Through Hole
RS Stock No. 185-8671
Brand ON Semiconductor
Manufacturers Part No. AFGHL40T65SPD
548 in stock in the UK
548 in stock in the UK
$ 5.263
Each (In a Pack of 2)
ON Semiconductor AFGHL40T65SPD IGBT, 80 A 650 V, 3-Pin TO-247, Through Hole
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 5.263 |
| 10 - 98 | $ 4.458 |
| 100 - 248 | $ 3.572 |
| 250 - 498 | $ 3.370 |
| 500+ | $ 3.182 |
Production pack (Tube)
Live stock
548 in stock in the UK
Specifications
Brand
ON Semiconductor
Maximum Continuous Collector Current
80 A
Maximum Collector Emitter Voltage
650 V
Maximum Gate Emitter Voltage
±20V
Maximum Power Dissipation
267 W
Number of Transistors
1
Package Type
TO-247
Mounting Type
Through Hole
Channel Type
N
Pin Count
3
Transistor Configuration
Single
Dimensions
15.87 x 4.82 x 20.82mm
Minimum Operating Temperature
-55 °C
Gate Capacitance
1518pF
Maximum Operating Temperature
+175 °C
Energy Rating
51mJ
Automotive Standard
AEC-Q101
Country of Origin
CN
