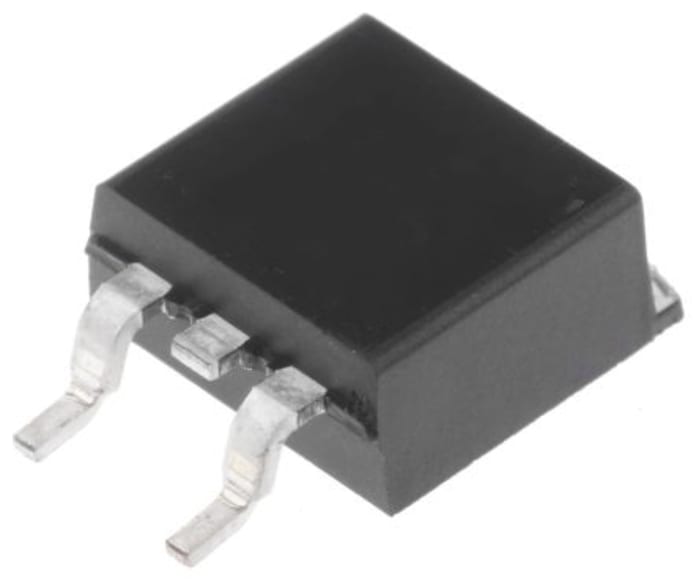

ON Semiconductor AFGB40T65SQDN IGBT, 80 A 650 V, 3-Pin D2PAK, Surface Mount
RS Stock No. 185-8642
Brand ON Semiconductor
Manufacturers Part No. AFGB40T65SQDN
602 in stock in the UK
602 in stock in the UK
$ 4.055
Each (In a Pack of 2)
ON Semiconductor AFGB40T65SQDN IGBT, 80 A 650 V, 3-Pin D2PAK, Surface Mount
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 4.055 |
| 10 - 98 | $ 3.451 |
| 100 - 248 | $ 2.753 |
| 250 - 498 | $ 2.605 |
| 500+ | $ 2.457 |
Production pack (Reel)
Live stock
602 in stock in the UK
Specifications
Brand
ON Semiconductor
Maximum Continuous Collector Current
80 A
Maximum Collector Emitter Voltage
650 V
Maximum Gate Emitter Voltage
±20V
Number of Transistors
1
Maximum Power Dissipation
238 W
Package Type
D2PAK
Mounting Type
Surface Mount
Channel Type
N
Pin Count
3
Transistor Configuration
Single
Dimensions
10.67 x 9.65 x 4.58mm
Automotive Standard
AEC-Q101
Minimum Operating Temperature
-55 °C
Gate Capacitance
2495pF
Maximum Operating Temperature
+175 °C
Energy Rating
22.3mJ
Country of Origin
CN
