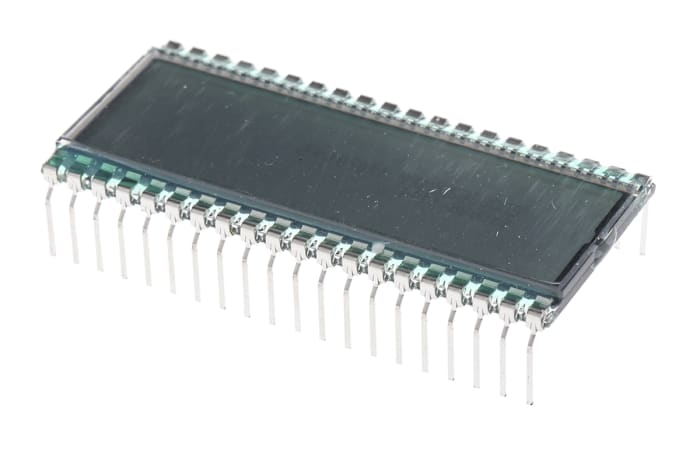

RS PRO 7-Segment LCD Display, Black on Grey, 1 Row by 3-1/2 Characters, Reflective
63 in stock in the UK
$ 9.98
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 9.98 |
| 5 - 9 | $ 8.90 |
| 10 - 24 | $ 8.08 |
| 25 - 49 | $ 7.01 |
| 50+ | $ 6.47 |
Live stock
63 in stock in the UK
Product details
Direct-Drive 7-segment, Reflective & Transflective
Reflective,The reflective types are suitable for use in sunlight and low-light applications. Viewing is enhanced by direct sunlight. Transflective,The transflective types have the ability to be backlit making them ideal for use in low-light or no-light conditions. Suitable LED backlight panels are available: Refer to Accessories range.
Numeric
Specifications
Brand
RS Pro
Display Type
7-Segment
Character Matrix
1 Row by 3-1/2 Characters
Character Rows
1
Characters per Row
3-1/2
Character Width
5mm
Character Height
8.9mm
Viewing Area Height
11.78mm
Viewing Area Width
44.8mm
Viewing Area Dimensions
45 x 12mm
External Depth
2.9mm
Illumination Colour
Black
Background Colour
Grey
Backlight Type
LED
External Dimensions
50.8 x 2.9 x 22.8mm
External Height
22.8mm
External Width
50.8mm
Display Mode
Reflective
Display Matrix Technology
STN
Maximum Operating Temperature
+80°C
Minimum Operating Temperature
-30°C
Series
PHR
Operating Temperature Range
-30 → +80°C
Country of Origin
CN
