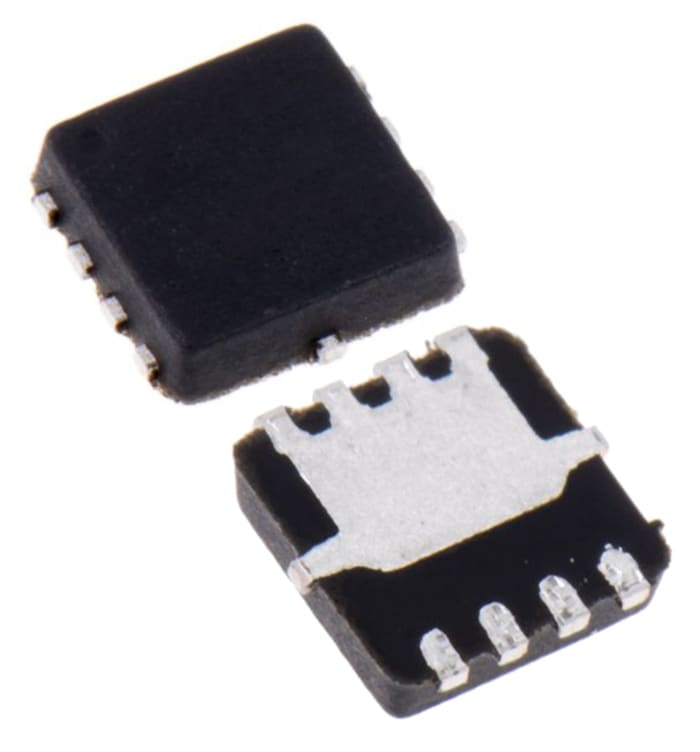

N-Channel MOSFET, 44 A, 80 V, 8-Pin WDFN ON Semiconductor NVTFS6H854NTAG

Brand

ON Semiconductor

Channel Type

N

Maximum Continuous Drain Current

44 A

Maximum Drain Source Voltage

80 V

Package Type

WDFN

Mounting Type

Surface Mount

Pin Count

8

Maximum Drain Source Resistance

14.5 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

4V

Minimum Gate Threshold Voltage

2V

Maximum Power Dissipation

68 W

Transistor Configuration

Single

Maximum Gate Source Voltage

±20 V

Number of Elements per Chip

1

Height

0.75mm

Width

3.15mm

Minimum Operating Temperature

-55 °C

Forward Diode Voltage

1.2V

Maximum Operating Temperature

+175 °C

Automotive Standard

AEC-Q101

Length

3.15mm

Typical Gate Charge @ Vgs

13 nC @ 10 V

Country of Origin

MY
