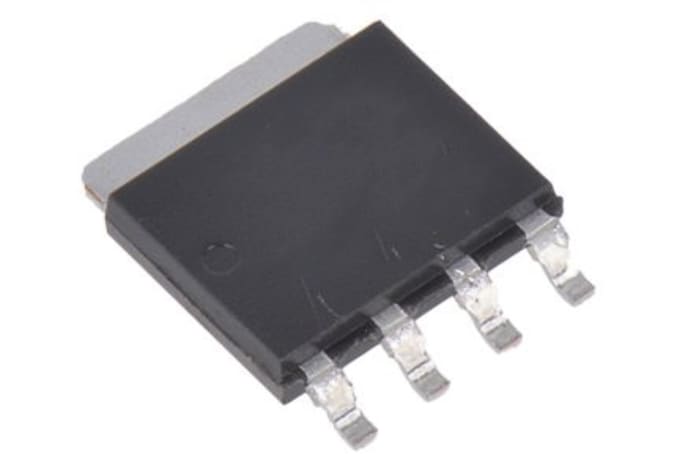

N-Channel MOSFET, 252 A, 40 V, 4-Pin LFPAK ON Semiconductor NVMYS1D3N04CTWG
RS Stock No. 185-8162
Brand ON Semiconductor
Manufacturers Part No. NVMYS1D3N04CTWG
3000 in stock in the UK
3000 in stock in the UK
$ 1.007
Each (On a Reel of 3000)
N-Channel MOSFET, 252 A, 40 V, 4-Pin LFPAK ON Semiconductor NVMYS1D3N04CTWG
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 3000 | $ 1.007 |
| 6000+ | $ 0.949 |
Live stock
3000 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
252 A
Maximum Drain Source Voltage
40 V
Package Type
LFPAK
Mounting Type
Surface Mount
Pin Count
4
Maximum Drain Source Resistance
1.15 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
3.5V
Minimum Gate Threshold Voltage
2.5V
Maximum Power Dissipation
134 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Typical Gate Charge @ Vgs
75 nC @ 10 V
Height
1.2mm
Width
4.25mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.2V
Maximum Operating Temperature
+175 °C
Automotive Standard
AEC-Q101
Length
5mm
Country of Origin
PH
