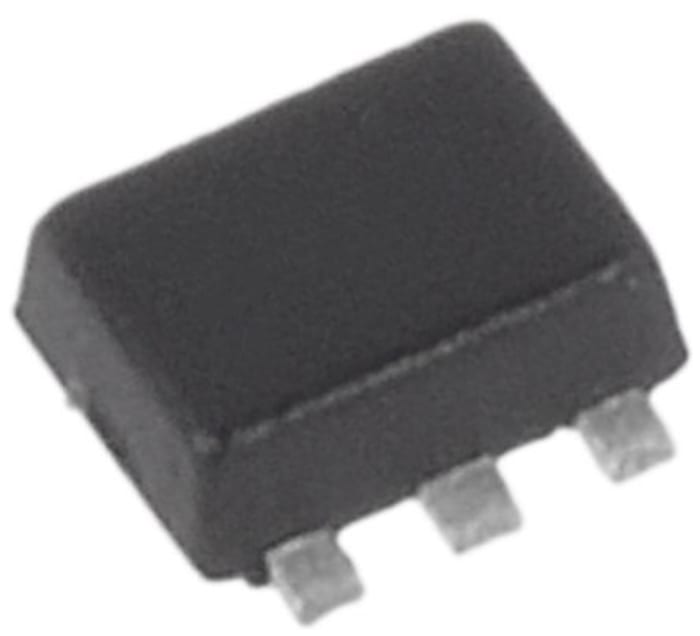

ON Semiconductor NUP4114UPXV6T2G, Uni-Directional TVS Diode, 6-Pin SOT-563
RS Stock No. 185-8143
Brand ON Semiconductor
Manufacturers Part No. NUP4114UPXV6T2G
3805 in stock in the UK
3805 in stock in the UK
$ 0.184
Each (On a Reel of 4000)
ON Semiconductor NUP4114UPXV6T2G, Uni-Directional TVS Diode, 6-Pin SOT-563
Buy in bulk
| quantity | Unit price |
|---|---|
| 4000 - 4000 | $ 0.184 |
| 8000 - 20000 | $ 0.168 |
| 24000+ | $ 0.161 |
Live stock
3805 in stock in the UK
Specifications
Brand
ON Semiconductor
Direction Type
Uni-Directional
Diode Configuration
Single
Maximum Clamping Voltage
10V
Minimum Breakdown Voltage
5.5V
Mounting Type
Surface Mount
Package Type
SOT-563
Pin Count
6
Maximum Peak Pulse Current
12A
ESD protection
Yes
Number of Elements per Chip
1
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Width
1.3mm
Test Current
1mA
Maximum Reverse Leakage Current
1µA
Dimensions
1.7 x 1.3 x 0.6mm
Working Voltage
5.5V
Automotive Standard
AEC-Q101
Capacitance
0.6pF
Length
1.7mm
Height
0.6mm
Country of Origin
CN
