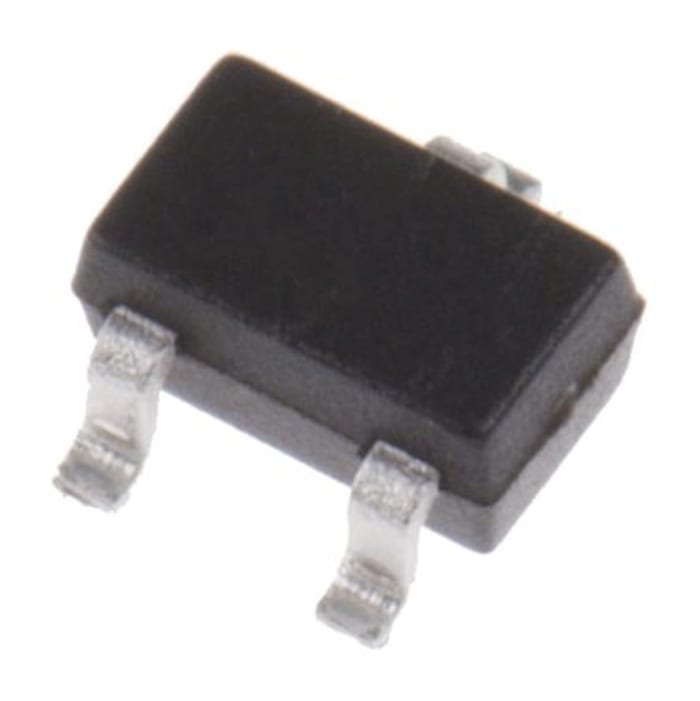

ON Semiconductor NUP1128WTT1G, Bi-Directional TVS Diode, 165W, 3-Pin SC-70

Brand

ON Semiconductor

Direction Type

Bi-Directional

Diode Configuration

Single

Maximum Clamping Voltage

55V

Minimum Breakdown Voltage

27.5V

Mounting Type

Surface Mount

Package Type

SC-70

Pin Count

3

Peak Pulse Power Dissipation

165W

Maximum Peak Pulse Current

3A

ESD protection

Yes

Number of Elements per Chip

1

Minimum Operating Temperature

-55 °C

Maximum Operating Temperature

+175 °C

Height

0.9mm

Width

1.35mm

Test Current

1mA

Maximum Reverse Leakage Current

750nA

Automotive Standard

AEC-Q101

Capacitance

13pF

Length

2.2mm

Surge Current Rating

50A

Dimensions

2.2 x 1.35 x 0.9mm

Working Voltage

26.5V

Country of Origin

CN
