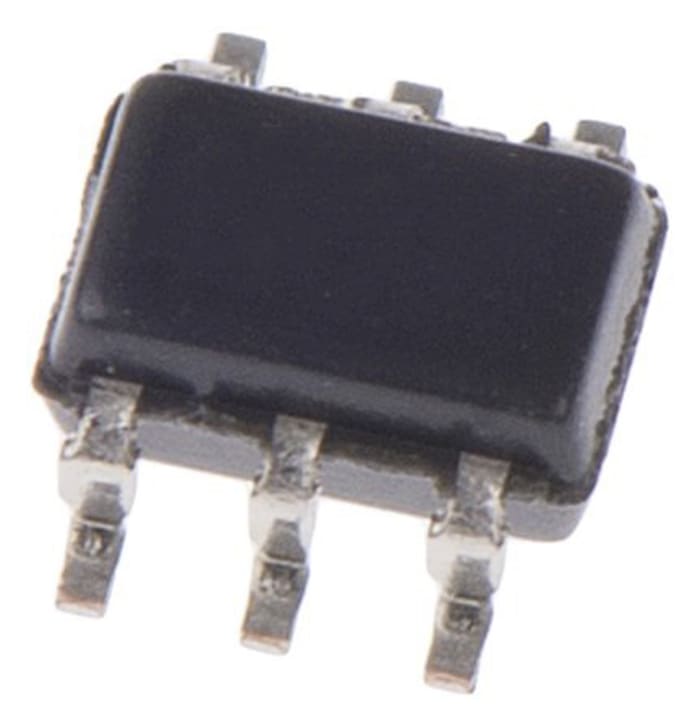

NCS210RSQT2G ON Semiconductor, Current Sense Amplifier Single Rail to Rail 6-Pin SC-70
RS Stock No. 185-8086
Brand ON Semiconductor
Manufacturers Part No. NCS210RSQT2G
Temporarily out of stock
Back order for despatch on 08/17/2021
Temporarily out of stock
$ 0.266
Each (On a Reel of 3000)
NCS210RSQT2G ON Semiconductor, Current Sense Amplifier Single Rail to Rail 6-Pin SC-70
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 6000 | $ 0.266 |
| 9000 - 21000 | $ 0.251 |
| 24000+ | $ 0.247 |
Live stock
Temporarily out of stock
Back order for despatch on 08/17/2021
Specifications
Brand
ON Semiconductor
Power Supply Type
Single
Typical Single Supply Voltage
2.2 → 26 V
Minimum CMRR
105dB
Number of Channels per Chip
1
Output Type
Rail to Rail
Maximum Supply Current
60 μA
Mounting Type
Surface Mount
Package Type
SC-70
Pin Count
6
Dimensions
2.2 x 1.35 x 1mm
Height
1mm
Length
2.2mm
Maximum Operating Supply Voltage
26 V
Width
1.35mm
Minimum Operating Temperature
-40 °C
Minimum Operating Supply Voltage
2.2 V
Maximum Operating Temperature
+125 °C
Automotive Standard
AEC-Q101
Country of Origin
MY
