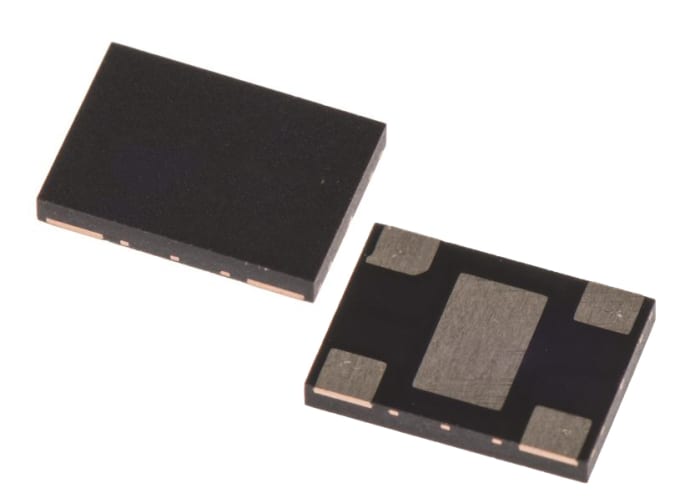

N-Channel MOSFET, 24 A, 650 V, 4-Pin PQFN ON Semiconductor FCMT125N65S3
RS Stock No. 185-7980
Brand ON Semiconductor
Manufacturers Part No. FCMT125N65S3
2828 in stock in the UK
2828 in stock in the UK
$ 1.517
Each (On a Reel of 3000)
N-Channel MOSFET, 24 A, 650 V, 4-Pin PQFN ON Semiconductor FCMT125N65S3
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 3000 | $ 1.517 |
| 6000+ | $ 1.464 |
Live stock
2828 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
24 A
Maximum Drain Source Voltage
650 V
Package Type
PQFN
Mounting Type
Surface Mount
Pin Count
4
Maximum Drain Source Resistance
125 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4.5V
Minimum Gate Threshold Voltage
2.5V
Maximum Power Dissipation
181 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
1.05mm
Width
8mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.2V
Maximum Operating Temperature
+150 °C
Length
8mm
Typical Gate Charge @ Vgs
49 nC @ 10 V
Country of Origin
PH
