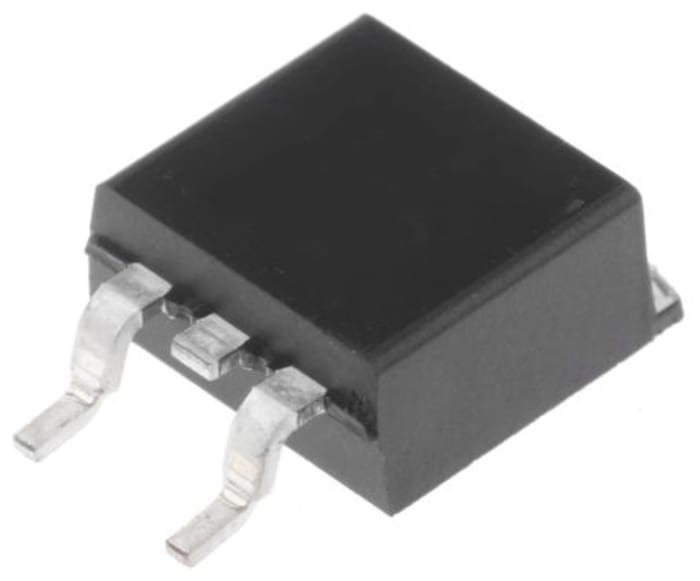

ON Semiconductor AFGB40T65SQDN IGBT, 80 A 650 V, 3-Pin D2PAK, Surface Mount
RS Stock No. 185-7972
Brand ON Semiconductor
Manufacturers Part No. AFGB40T65SQDN
Temporarily out of stock
Back order for despatch on 01/12/2022
Temporarily out of stock
$ 2.134
Each (On a Reel of 800)
ON Semiconductor AFGB40T65SQDN IGBT, 80 A 650 V, 3-Pin D2PAK, Surface Mount
Live stock
Temporarily out of stock
Back order for despatch on 01/12/2022
Specifications
Brand
ON Semiconductor
Maximum Continuous Collector Current
80 A
Maximum Collector Emitter Voltage
650 V
Maximum Gate Emitter Voltage
±20V
Number of Transistors
1
Maximum Power Dissipation
238 W
Package Type
D2PAK
Mounting Type
Surface Mount
Channel Type
N
Pin Count
3
Transistor Configuration
Single
Dimensions
10.67 x 9.65 x 4.58mm
Automotive Standard
AEC-Q101
Minimum Operating Temperature
-55 °C
Gate Capacitance
2495pF
Maximum Operating Temperature
+175 °C
Energy Rating
22.3mJ
Country of Origin
CN
