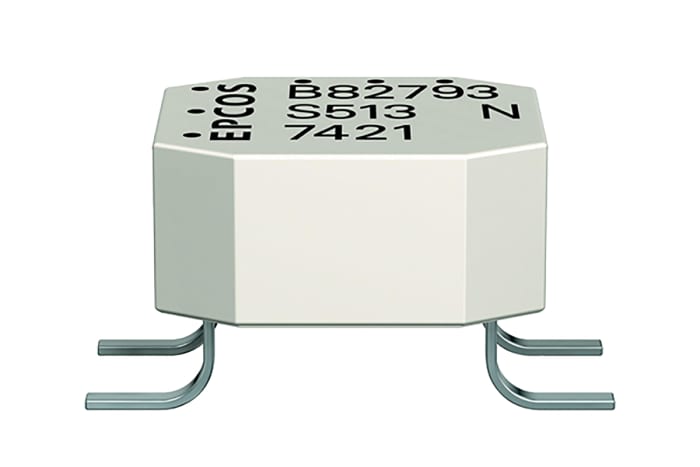

TDK 47 mH 100 mA Common Mode Choke 3700mΩ 42 V ac, 80 V dc
RS Stock No. 185-7607
Brand EPCOS
Manufacturers Part No. B82793C0476N265
Temporarily out of stock
Temporarily out of stock
$ 2.659
Each (Supplied as a Tape)
TDK 47 mH 100 mA Common Mode Choke 3700mΩ 42 V ac, 80 V dc
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 15 | $ 2.659 |
| 20 - 45 | $ 2.457 |
| 50 - 95 | $ 2.170 |
| 100 - 495 | $ 1.968 |
| 500+ | $ 1.716 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
Epcos
Inductance
47 mH
Series
B82793C0
Impedance
24 kΩ
Test Frequency
50/60 Hz
DC Resistance
3700mΩ
Maximum Current
100 mA
Dimensions
7.1 x 6 x 4.8mm
Operating Temperature Range
-40 → +125 °C
Number of Lines
1
Automotive Standard
AEC-Q200
Mounting Type
Surface Mount
Voltage Rating
42 V ac, 80 V dc
Termination Style
Solder Pad
Package/Case
SMD
Maximum Operating Temperature
+125°C
Length
7.1mm
Depth
6mm
Minimum Operating Temperature
-40°C
Height
4.8 (with Pin)mm
Country of Origin
CN
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
