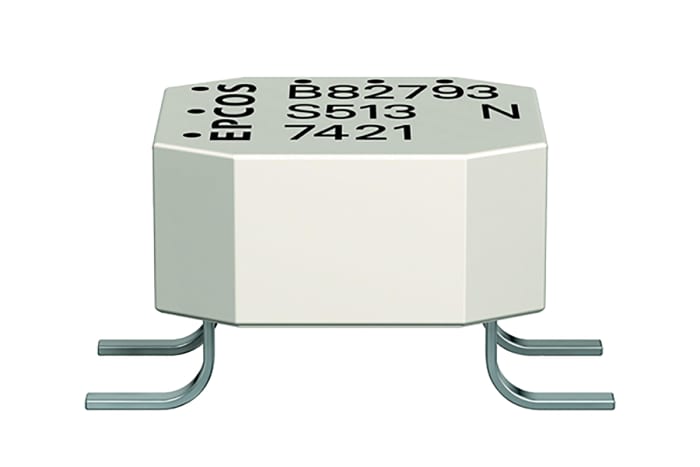

TDK 47 mH 100 mA Common Mode Choke 3700mΩ 42 V ac, 80 V dc
RS Stock No. 185-7562
Brand EPCOS
Manufacturers Part No. B82793C0476N265
1500 in stock in the UK
1500 in stock in the UK
$ 1.194
Each (On a Reel of 1500)
TDK 47 mH 100 mA Common Mode Choke 3700mΩ 42 V ac, 80 V dc
Live stock
1500 in stock in the UK
Specifications
Brand
Epcos
Inductance
47 mH
Series
B82793C0
Impedance
24 kΩ
Test Frequency
50/60 Hz
DC Resistance
3700mΩ
Maximum Current
100 mA
Dimensions
7.1 x 6 x 4.8mm
Operating Temperature Range
-40 → +125 °C
Number of Lines
1
Automotive Standard
AEC-Q200
Mounting Type
Surface Mount
Voltage Rating
42 V ac, 80 V dc
Termination Style
Solder Pad
Package/Case
SMD
Minimum Operating Temperature
-40°C
Height
4.8 (with Pin)mm
Depth
6mm
Maximum Operating Temperature
+125°C
Length
7.1mm
