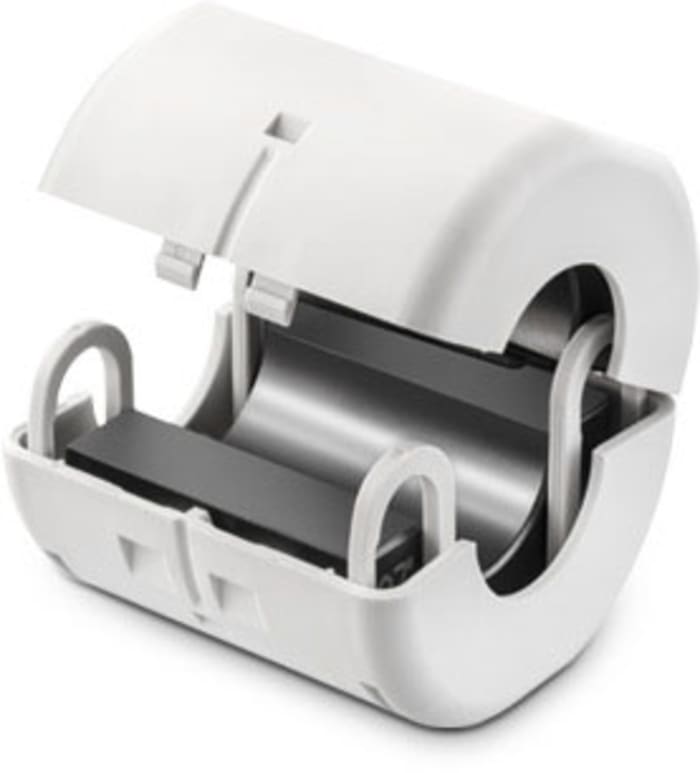

Wurth Elektronik Ferrite Sleeve with key, 56 x 47 x 43mm, For Especially for Applications in the Low Frequency Range
RS Stock No. 185-7535
Brand Wurth Elektronik
Manufacturers Part No. 74272211
Temporarily out of stock
Temporarily out of stock
$ 26.36
Each
Wurth Elektronik Ferrite Sleeve with key, 56 x 47 x 43mm, For Especially for Applications in the Low Frequency Range
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 26.36 |
| 5 - 9 | $ 24.14 |
| 10+ | $ 21.86 |
Live stock
Temporarily out of stock
Specifications
Brand
Wurth Elektronik
Type
Snap Ferrite
Series
STAR-TEC
Application
Especially for Applications in the Low Frequency Range from 300 kHz to 30 Mhz, Perfect for Applications with Varying Cable Diameter, Reusable because of the Key Technology Therefore Perfect for Test and Measuring Purposes and Cables with Difficult Access, Suppression of Electronic Ballasts (i.e. Neon Tube) in the Lighting Industry
Material
Manganese-Zinc (Coating)
Key
Yes
Outer Dimensions
56 x 47 x 43mm
Aperture Diameter
17 → 21mm
Number of Apertures
1
Outer Depth
56mm
Outer Height
43mm
Outer Width
47mm
Country of Origin
CN
