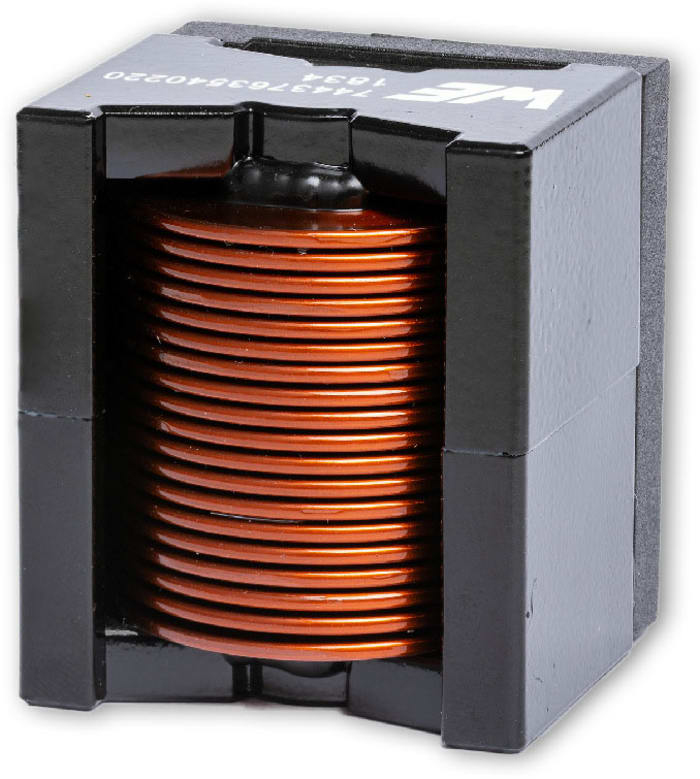

Wurth 22 μH ±20% MnZn Leaded Inductor, Max SRF:9MHz, 40.6A Idc, 3.2mΩ Rdc, WE-HCFT

RS Stock No. 185-7421

Brand Wurth Elektronik

Manufacturers Part No. 7443763540220

Temporarily out of stock

$ 21.60

Each

Wurth 22 μH ±20% MnZn Leaded Inductor, Max SRF:9MHz, 40.6A Idc, 3.2mΩ Rdc, WE-HCFT

Live stock

Temporarily out of stock

Specifications

Brand

Wurth Elektronik

Inductance

22 μH

Maximum dc Current

40.6A

Mounting Type

Through Hole

Maximum DC Resistance

3.2mΩ

Tolerance

±20%

Length

36mm

Depth

41mm

Height

35mm

Dimensions

36 x 41 x 35mm

Core Material

MnZn

Maximum Self Resonant Frequency

9MHz

Series

WE-HCFT

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

Country of Origin

Technical Document

RoHS Certificate of Compliance

Statement of Conformity
