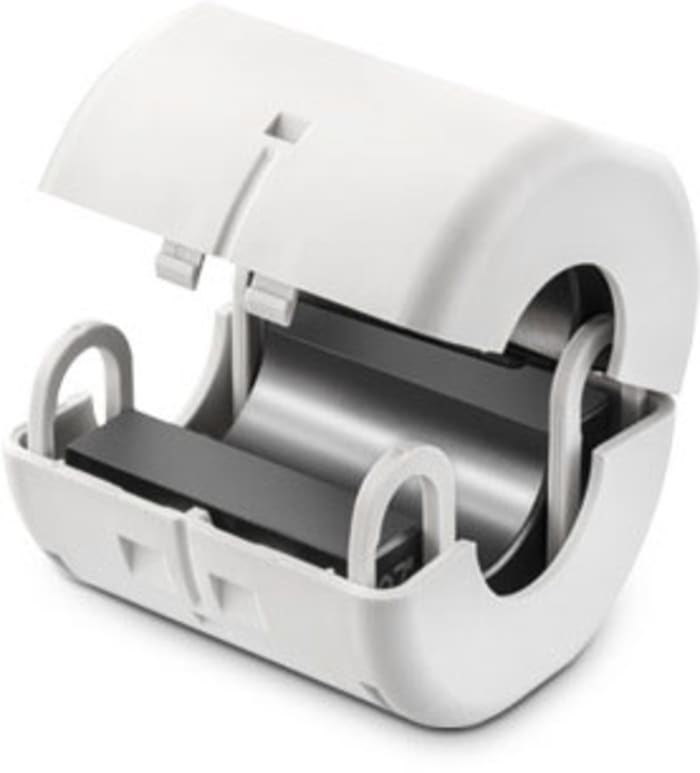

Wurth Elektronik Ferrite Sleeve with key, 41.6 x 33.5 x 28.4mm, For Especially for Applications in the Low Frequency
RS Stock No. 185-7410
Brand Wurth Elektronik
Manufacturers Part No. 74272221
69 in stock in the UK
69 in stock in the UK
$ 9.16
Each
Wurth Elektronik Ferrite Sleeve with key, 41.6 x 33.5 x 28.4mm, For Especially for Applications in the Low Frequency
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 9.16 |
| 5 - 9 | $ 8.40 |
| 10 - 19 | $ 7.65 |
| 20+ | $ 6.43 |
Live stock
69 in stock in the UK
Specifications
Brand
Wurth Elektronik
Type
Snap Ferrite
Series
STAR-TEC
Application
Especially for Applications in the Low Frequency Range from 300 kHz to 30 Mhz, Perfect for Applications with Varying Cable Diameter, Reusable because of the Key Technology Therefore Perfect for Test and Measuring Purposes and Cables with Difficult Access, Suppression of Electronic Ballasts (i.e. Neon Tube) in the Lighting Industry
Material
Manganese-Zinc (Coating)
Key
Yes
Outer Dimensions
41.6 x 33.5 x 28.4mm
Aperture Diameter
8.5 → 10.5mm
Number of Apertures
1
Outer Depth
41.6mm
Outer Height
28.4mm
Outer Width
33.5mm
Country of Origin
CN
