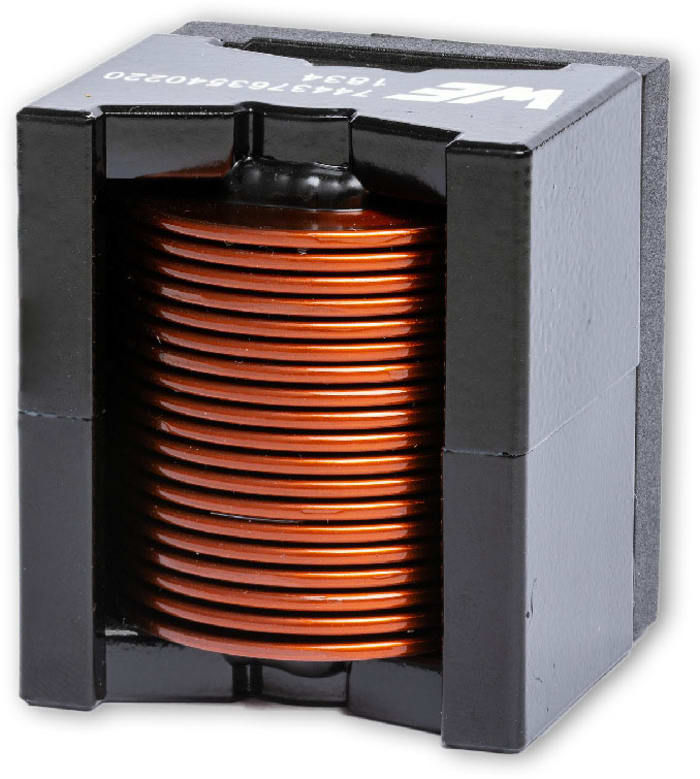

Wurth 15 μH ±20% MnZn Leaded Inductor, Max SRF:12MHz, 45.3A Idc, 2.16mΩ Rdc, WE-HCFT
RS Stock No. 185-7383
Brand Wurth Elektronik
Manufacturers Part No. 7443763540150
14 in stock in the UK
14 in stock in the UK
$ 21.60
Each
Wurth 15 μH ±20% MnZn Leaded Inductor, Max SRF:12MHz, 45.3A Idc, 2.16mΩ Rdc, WE-HCFT
Live stock
14 in stock in the UK
Specifications
Brand
Wurth Elektronik
Inductance
15 μH
Maximum dc Current
45.3A
Mounting Type
Through Hole
Maximum DC Resistance
2.16mΩ
Tolerance
±20%
Length
36mm
Depth
41mm
Height
35mm
Dimensions
36 x 41 x 35mm
Core Material
MnZn
Maximum Self Resonant Frequency
12MHz
Series
WE-HCFT
Maximum Operating Temperature
+125°C
Minimum Operating Temperature
-40°C
Country of Origin
CN
