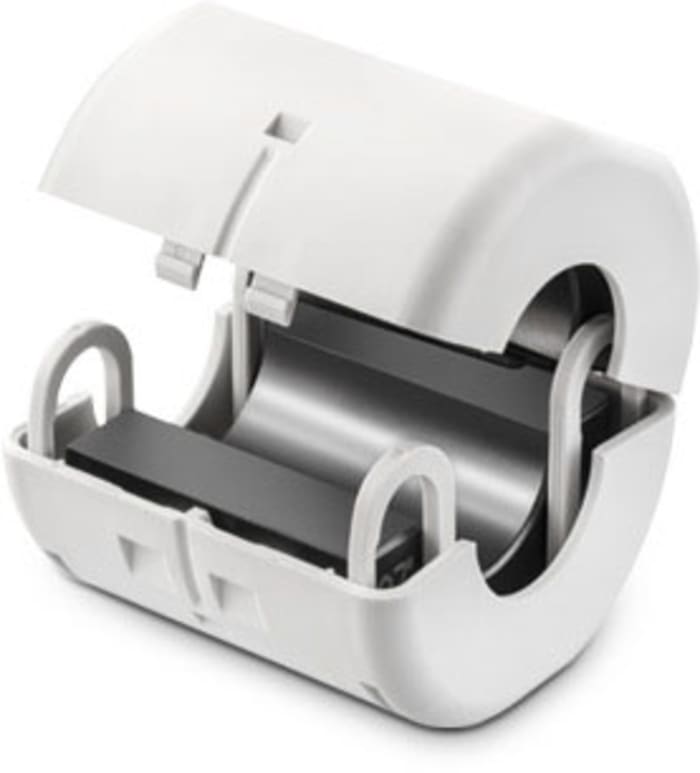

Wurth Elektronik Ferrite Sleeve with key, 49 x 39 x 35mm, For Especially for Applications in the Low Frequency Range
RS Stock No. 185-7113
Brand Wurth Elektronik
Manufacturers Part No. 74272151
Temporarily out of stock
Back order for despatch on 04/16/2021
Temporarily out of stock
$ 6.178
Each (In a Tray of 24)
Wurth Elektronik Ferrite Sleeve with key, 49 x 39 x 35mm, For Especially for Applications in the Low Frequency Range
Live stock
Temporarily out of stock
Back order for despatch on 04/16/2021
Specifications
Brand
Wurth Elektronik
Type
Snap Ferrite
Series
STAR-TEC
Application
Especially for Applications in the Low Frequency Range from 300 kHz to 30 Mhz, Perfect for Applications with Varying Cable Diameter, Reusable because of the Key Technology Therefore Perfect for Test and Measuring Purposes and Cables with Difficult Access, Suppression of Electronic Ballasts (i.e. Neon Tube) in the Lighting Industry
Material
Manganese-Zinc (Coating)
Key
Yes
Outer Dimensions
49 x 39 x 35mm
Aperture Diameter
12 → 15mm
Number of Apertures
1
Outer Depth
49mm
Outer Height
35mm
Outer Width
39mm
Country of Origin
DE
