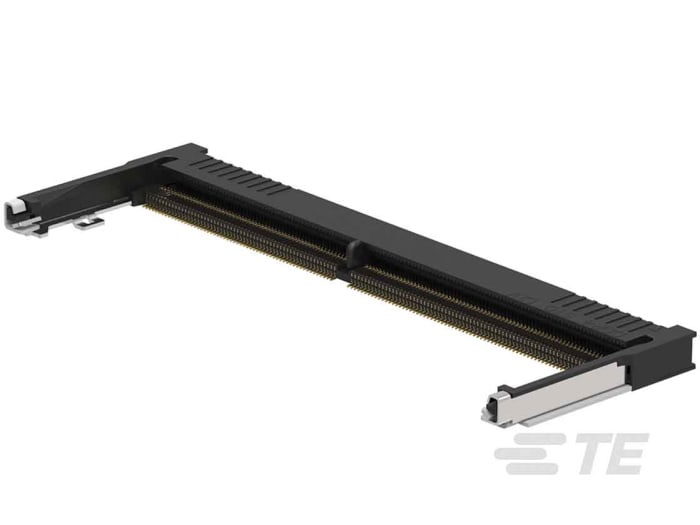

TE Connectivity 0.5mm Pitch 260 Way, Right Angle SMT Mount SO DIMM Socket ,25.0 V ,500.0mA
RS Stock No. 185-5875
Brand TE Connectivity
Manufacturers Part No. 2309407-1
550 in stock in the UK
550 in stock in the UK
$ 1.480
Each (Supplied as a Tape)
TE Connectivity 0.5mm Pitch 260 Way, Right Angle SMT Mount SO DIMM Socket ,25.0 V ,500.0mA
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 1.480 |
| 25 - 45 | $ 1.343 |
| 50 - 95 | $ 1.284 |
| 100 - 245 | $ 1.182 |
| 250+ | $ 1.096 |
Live stock
550 in stock in the UK
Specifications
Brand
TE Connectivity
Gender
Female
Memory Socket Type
DIMM Socket
Body Orientation
Right Angle
Contact Material
Copper Alloy
Contact Plating
Gold Flash, Nickel Plated (Under Plated)
Number Of Contacts
260
Pitch
0.5mm
Mounting Type
Surface Mount
Termination Method
Solder
Housing Material
Thermoplastic
SDRAM Type
SO
Latching
Yes
Row Spacing
8.2mm
Maximum Contact Resistance
50.0mΩ
Current Rating
500.0mA
Series Number
2309407
Minimum Operating Temperature
+85°C
Voltage Rating
25.0 V
Maximum Operating Temperature
+85°C
