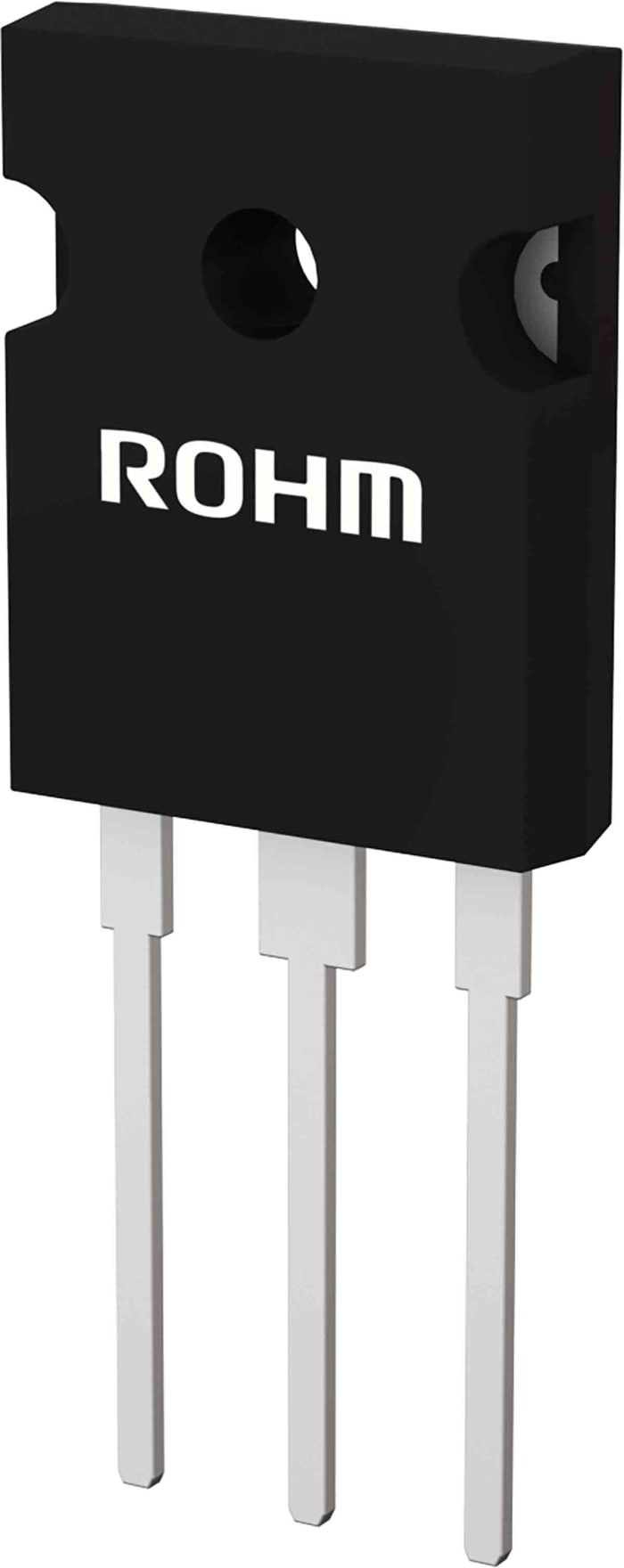

N-Channel MOSFET, 25 A, 600 V, 3-Pin TO-247G ROHM R6025JNZ4C13
RS Stock No. 185-1308
Brand ROHM
Manufacturers Part No. R6025JNZ4C13
Temporarily out of stock
Temporarily out of stock
$ 8.06
Each
N-Channel MOSFET, 25 A, 600 V, 3-Pin TO-247G ROHM R6025JNZ4C13
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | $ 8.06 |
| 10 - 19 | $ 7.60 |
| 20+ | $ 7.08 |
Live stock
Temporarily out of stock
Specifications
Brand
ROHM
Channel Type
N
Maximum Continuous Drain Current
25 A
Maximum Drain Source Voltage
600 V
Package Type
TO-247G
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
180 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
7V
Minimum Gate Threshold Voltage
5V
Maximum Power Dissipation
306 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
21.25mm
Width
5.22mm
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Length
16.24mm
Typical Gate Charge @ Vgs
57 nC @ 15 V
Country of Origin
TH
