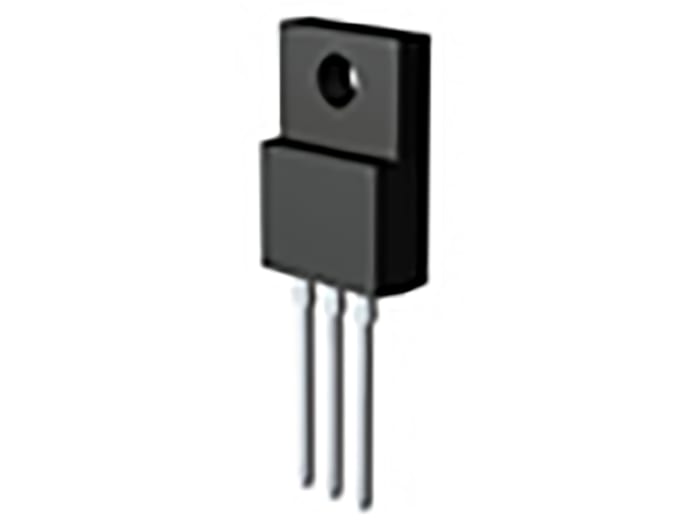

N-Channel MOSFET, 18 A, 600 V, 3-Pin TO-220FM ROHM R6018JNXC7G
RS Stock No. 185-1301
Brand ROHM
Manufacturers Part No. R6018JNXC7G
Temporarily out of stock
Temporarily out of stock
$ 4.294
Each (In a Pack of 5)
N-Channel MOSFET, 18 A, 600 V, 3-Pin TO-220FM ROHM R6018JNXC7G
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 45 | $ 4.294 |
| 50+ | $ 4.060 |
Live stock
Temporarily out of stock
Specifications
Brand
ROHM
Channel Type
N
Maximum Continuous Drain Current
18 A
Maximum Drain Source Voltage
600 V
Package Type
TO-220FM
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
280 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
7V
Minimum Gate Threshold Voltage
5V
Maximum Power Dissipation
72 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
16.27mm
Width
5mm
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Length
10.3mm
Typical Gate Charge @ Vgs
42 nC @ 15 V
